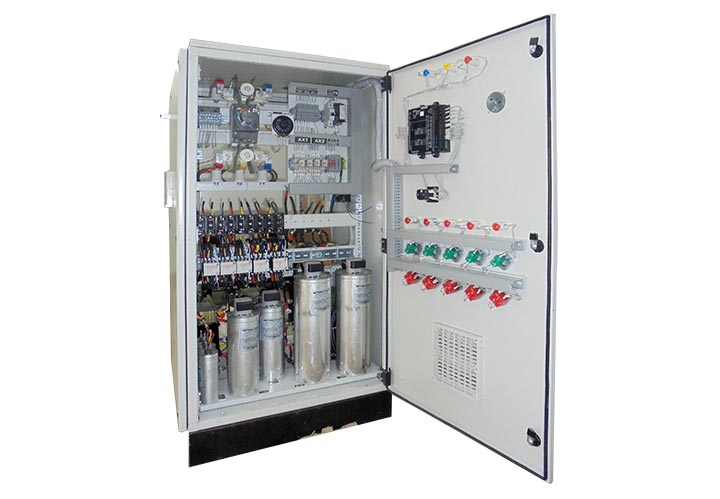

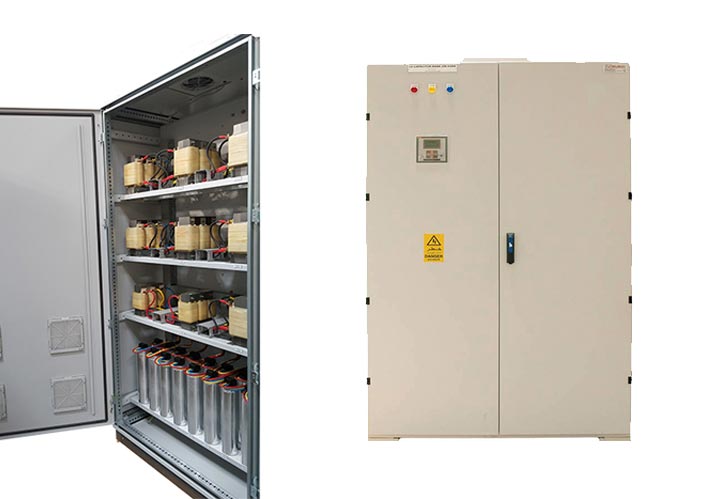

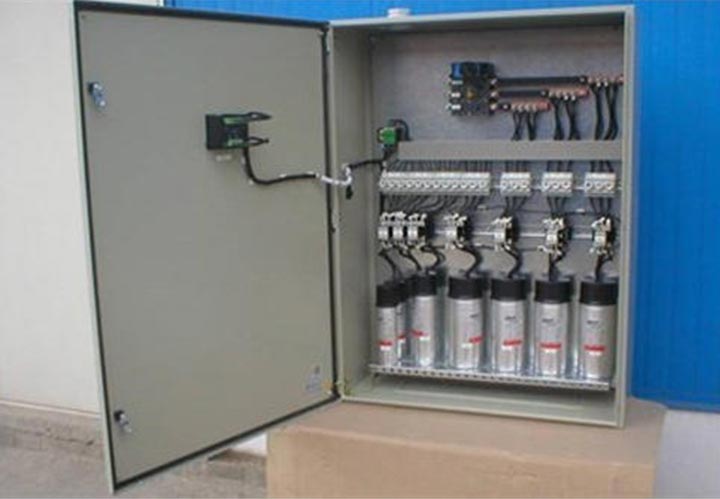

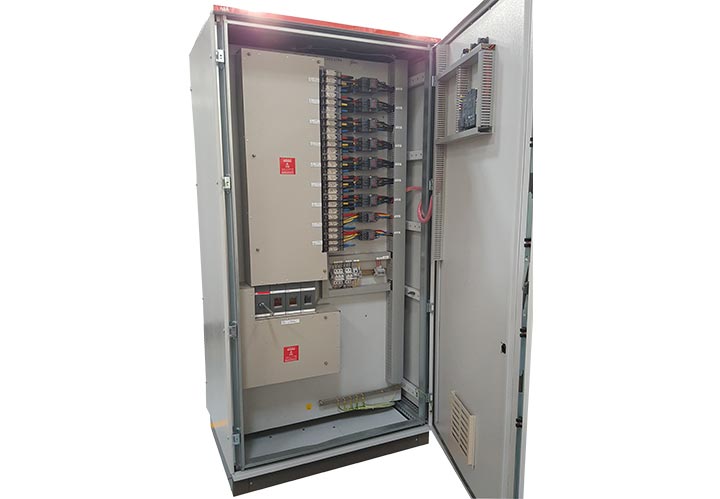

AUTOMATIC POWER FACTOR CORRECTION CAPACITOR BANKS

Rating:

Upto 1000 KVAR

Incoming:

MCCB / Isolator

Outgoing:

Multi units of 6 step or 12 step capacitor banks switched by TP contactors and backed up by HRC fuses. All Capacitors are provided with discharge resistors.

Metering:

Microprocessor based 6 step / 12 step PF regulator relay with digital PF indicator.

Enclosure:

Electro galvanized sheet steel with powder coated or GRP Enclosure conforming to different IP ratings.

Busbars:

High conductivity hard drawn electrolytically tinned and sleeved with color coded fire retardant insulation sleeves of 20KV /mm class, Copper Bus Bars
